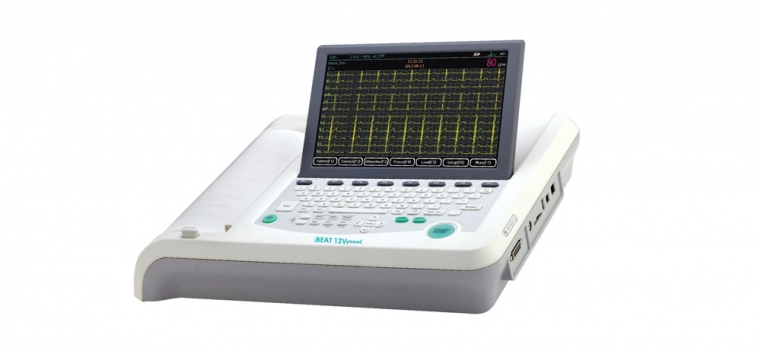

12 Channel ECG Recorder Model Ibeat 12v Grand

12-channel-ecg-recorder-model-ibeat-12v-grand
12-channel-ecg-recorder-model-ibeat-12v-grand

iBeat 12V Grand is the ECG Recorder with 10" Display which helps to preview the ECG before taking printout. And it offers huge storage upto 10000 ECGs in XML/PDF/BMP formats in the inbuilt SD Card.


download brochure

Request For Quote

  • Overview
  • Features
  • Technical Specifications
  • Benefits

Overview

iBeat12v Grand offers Simultaneous 12 leads ECG acquisition and display, and  Simultaneous 12 leads ECG printing with 210mm thermal paper. With Alphanumeric keyboard, patient data are easily entered. With Built-in rechargeable lithium battery, print up to 360 ECG reports and ECG auto-interpretation program helps the clinician to decipher precise report.

Features

  • 12 channel ECG recording and have simultaneous acquisition of all Leeds and display
  • Automatic: 12CHX1,6CHX2+1R, 6CHX2,3CHX4+3R
  • 3CHX4+1R,3CHX4
  • Manual: 12CH, 6CH,3CH, 1CH+1R, 1CH
  • any Lead can be selected as Rhythm Lead
  • Built in thermal Matrix printer
  • USB SLAVE port can be connected to PC-ECG software (optional)
  • USB MASTER port can be connected to an external USB printer supporting PCL6 language to
  • print 12 leads ECG reports on A4 paper (optional)
  • Network transmission (optional)

Technical Specifications

  • Simultaneous 12 leads ECG acquisition and display
  • Printing on 210mm/213mm thermal paper (Roll or Z-fold)
  • 10 inch 800x480 TFT color LCD
  • Alpha-numeric keyboard
  • Built-in 4G SD card, save up to 10,000 ECG reports in XML/PDF/BMP format (optional)
  • Built-in rechargeable lithium battery (print up to 360 ECG reports)
  • Pacemaker detection
  • Precise ECG auto-interpretation program
  • USB Slave port can be connected to PC-ECG software (Optional)
  • USB Master port can be connected to an external USB printer supporting PCL6 language to print 12 leads ECG reports on A4 paper (Optional)
  • Network transmission (optional)
  • Software upgrade automatically via SD card

Benefits

Delivers Precise ECG Reports
