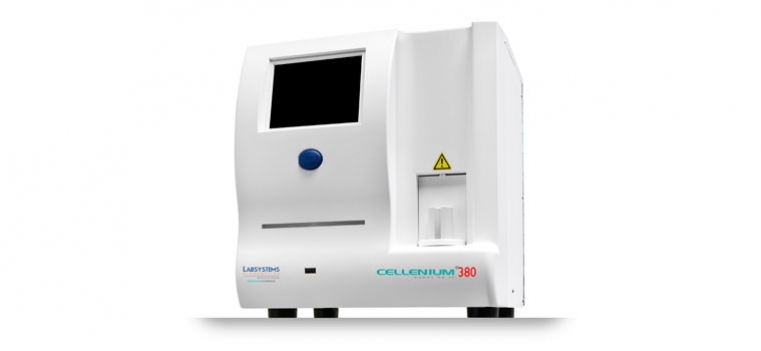

Cellenium 380

Double chamber 3 part differential Hematology Analyser

• The Cellenium 380 is a compact, bench top, 3-part WBC differential analyzer with a sample throughput of 80 tests/ hour making it our fastest analyzer today.

• The Cellenium 380 is operated via a color touch screen and an easy to follow, intuitive icon user interface. With all its features and small footprint, the system is ideal for laboratories, clinics and physician practices that are looking for a reliable, safe, accurate and easy to use the instrument.

MEASURING DATA

• Throughput – 80 tests/hour
• Parameters - 22 hematology parameters, including 3-part differential: WBC, LYM, MID, GRA, LYM%, MID%, GRA%, RBC, HCT, MCV, HGB, MCH, MCHC, PLT, PCT, MPV, P-LCC, P-LCR, RDW-CV, RDW-SD, PDW-CV, PDW-SD

MEASURING PRINCIPLE

• Volumetric impedance method
• Light absorbance for HGB measurement

REAGENTS AND SAMPLING SYSTEM

Samples

• Sample volume - 25 µl of whole blood in normal 3-part mode, 50 µl of pre-diluted blood
• Sampling method -open tube system with automatic sample rotor
• Calibration – manual or automatic

Reagents

• Environmentally friendly Diluent & Cleaner reagents and cyanide-free Lyse
• Clinreact•ECO Reagent Pack:up to 145 measurements

QUALITY CONTROL

• Separate QC database
• Levey-Jennings graphs

MEASUREMENT

• 2 counting chambers
• Aperture diameter - 70 µ (RBC/PLT) and  100 µ (WBC)
• Clog prevention - high-voltage burst on aperture in each analysis cycle and high pressure back-flush
• Cleaning procedure - high-voltage burst of the aperture, high-pressure back-flush, chemical cleaning of the apertures

TECHNICAL FEATURES

• Data capacity – 10,000 results, including RBC, PLT, and WBC 3-part histogram
• Host computer interface - USB B port
• Data back-up method - USB mass storage device
• Software upgrade method via USB A port using USB mass storage device
• Printer interface - USB with support for HP printers
• Built-in thermal printer module, 56 mm wide roll paper, full report with histograms
• Display 320x240 dots, high-contrast, backlit, color graphics LCD (liquid crystal display) with touch screen
• External keyboard, USB keyboard
• Power requirement - 12VDC, 5A, 60W max. operating power
• Operating temperature - 15—30°C (59—86 °F). Optimal temperature is 25 °C (77 °F)

USAGE

• User interface - easy-to-use, menu driven with touch screen, separate START button and status LED
• User languages - English, Indonesian,German, Italian, French, Czech,Portuguese, Polish, Spanish, Vietnamese, Russian, Greek

DIMENSIONS

• Size (Width x Depth x Height): 32,0 cm x 26,0 cm x 36,5 cm 12.6 in x 10.2 in x 14.4 in
• Weight: 12 kg, 26.4 lbs

Accurate and Precise results

• Proven impedance measurement technology with advanced agging algorithms
• Clog detection and prevention with automatic system cleaning processes
• Comprehensive 22 parameter CBC with 3 histograms

User friendly and easy to operate

• Easy to use high resolution touch screen with multi-language menu
• Recording of sample and quality control information is fast and efcient
• 4 USB ports allow simple connection with external devices such as a host computer or an external printer
• Advanced software package providing comprehensive QC statistics

Operator safety

• Unique sample rotor that reduces the risk of biohazard exposure
• Self-cleaning procedures minimize daily maintenance

Condence

• System uses easy to understand warning messages and sample ags
• Designed to use specic Trivitron reagents to deliver the highest quality results
